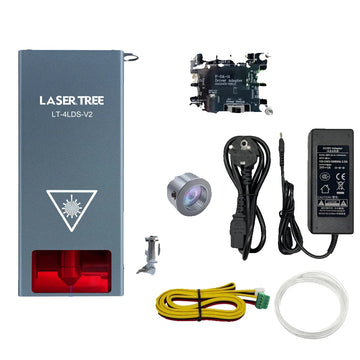

Laser Head, Wood Cutting, Blue Light
Additional information
Product Description
What makes this so special?
- 4-Beam Compressed Technology: Built-in 4pcs 5W beam compressed laser diodes for higher power density and faster cutting performance. Can cut 10mm thick bass/pine plywood, 8mm thick black acrylic, and even08mm thick stainless steel in one pass.
- Air Assistance Performance: Change the diameter of air tube from M5 to M8, to get stronger air pressure at air nozzle. The air assist system blows air through the air nozzle to improve cutting performance and reduce burn marks.
- High Precision Engraved Resolution:08mm for creating intricate details.
- Widely Compatible Design: Can be installed on ZBAIT*,Ortu*,Two Tr**s,Sculpf**9,Atomsta** and other models of DIY laser engraving machines.
- Laser Protective Cover: Comes with a removable protective cover to filter blue light and work without laser glasses.
Specifications:
- Wavelength: 455nm (±10nm)
- Input Voltage: 24V 2.3A-3.2A
- Interface Parameters: Support TTL signal control power
- Item Size: 63*63*144.5mm
- Engraving Accuracy: 0.08mm
- Focusing Method: Fixed Focus Laser
- Air Assist: Clean-cut edges
- Power: 4W-20W
- Materials: Aluminum Alloy + Plastic
- Light Color: Blue
- Air Pump Suggestion: Air Pressure and Capacity: ≥0.027kPa, 27L/min
- Cutting Ability: 8mm Bass Plywood, 120mm/min, one pass; 5mm Bass Plywood, 50mm/min, one pass; 5mm MDF, 150mm/min, two passes
- Protective Cover: Removable Protective Cover
- Compatible Design: Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
