Split Charge Relay Kit, Voltage Sense Relay, 12V

What makes this so special?

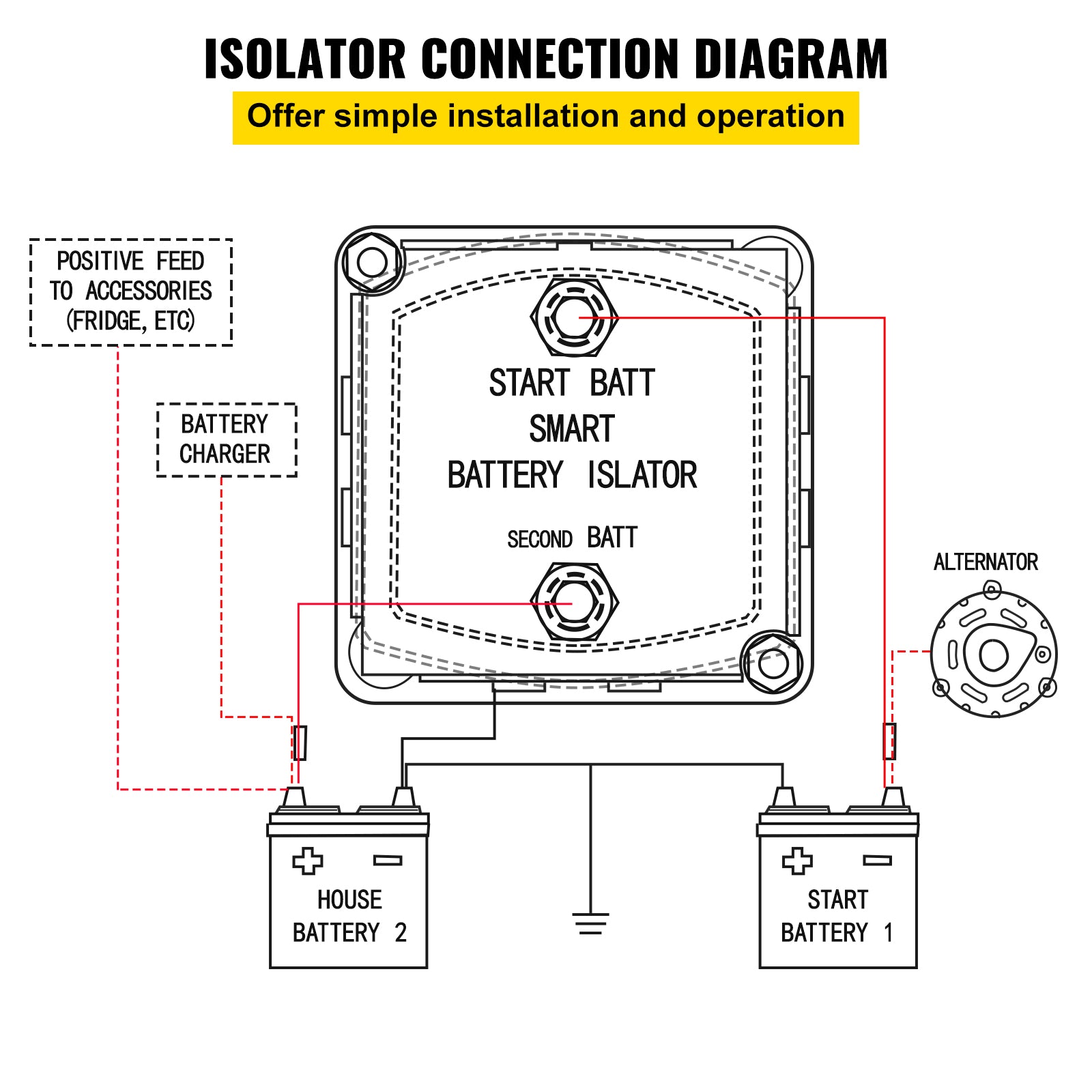

• Dual Battery Isolator: The smart battery isolator cuts in at3 volts and cuts out at8 volts to ensure your primary battery is always charged and ready to start your vehicle. It can charge two batteries simultaneously and isolate them from each other when the vehicle is turned off.
• Easy Installation: The split charge relay kit comes with complete accessories, allowing you to start installing directly without purchasing additional components. Detailed instructions for easily and flawless installation are also included.

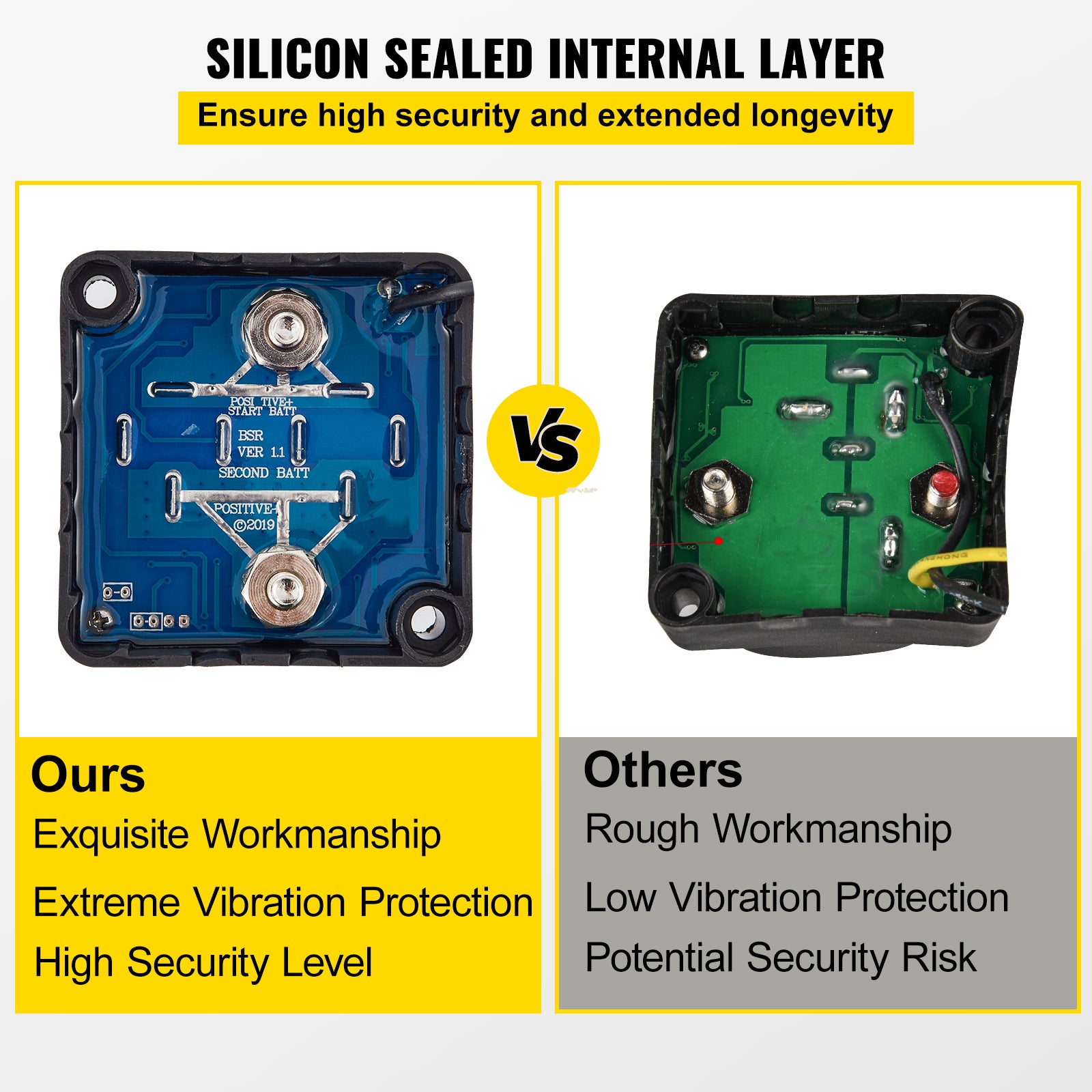

• Rugged & Durable: Split charge relay is made of a premium plastic material, which is shockproof and dustproof, ensuring maximum strength and durability for long-lasting usage.

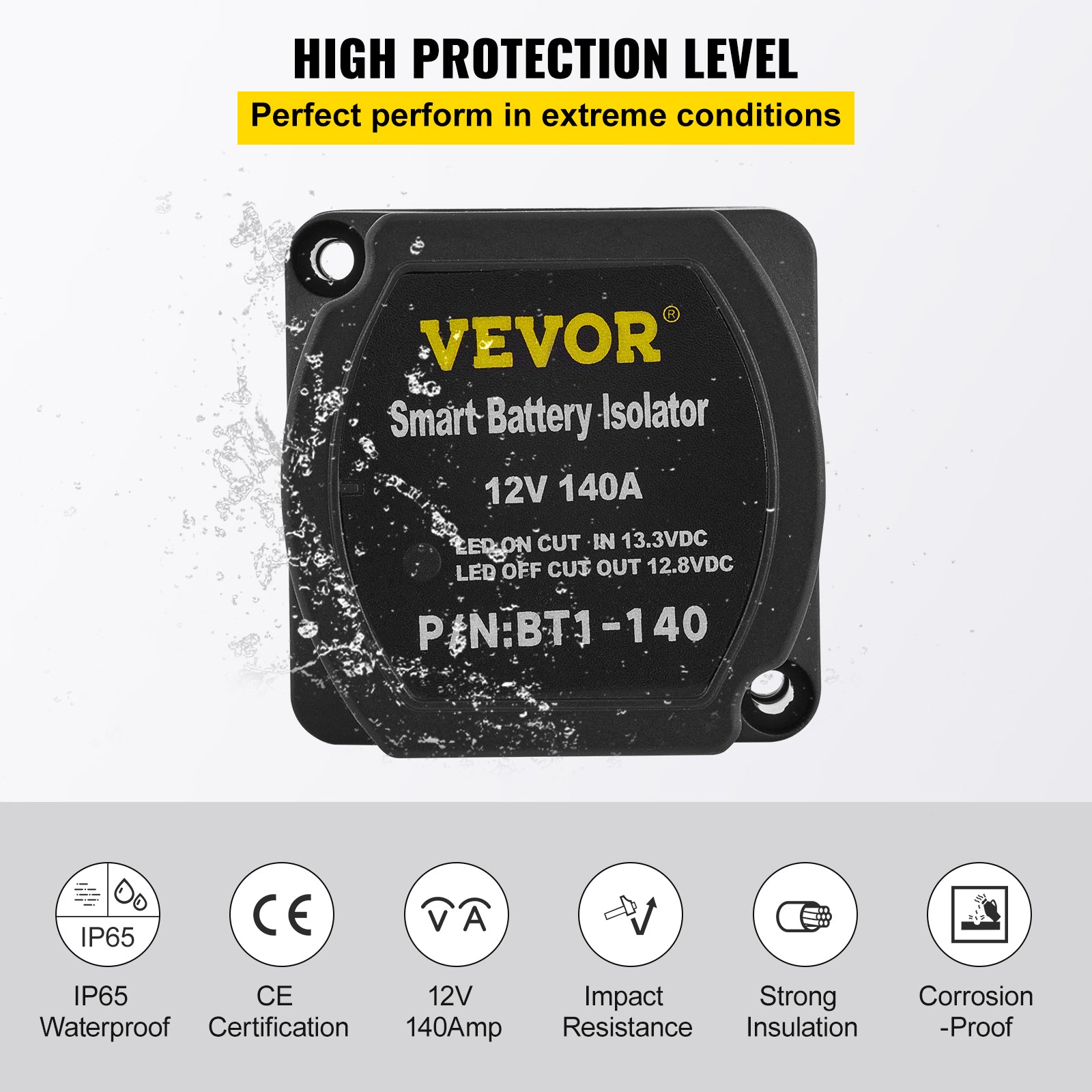

• Waterproof: Voltage sensitive relay is waterproof up to IP65, which means that your isolator is secure for use even in dusty, wet, and unexpected extreme weather environments. Great for extreme vibration applications as well.

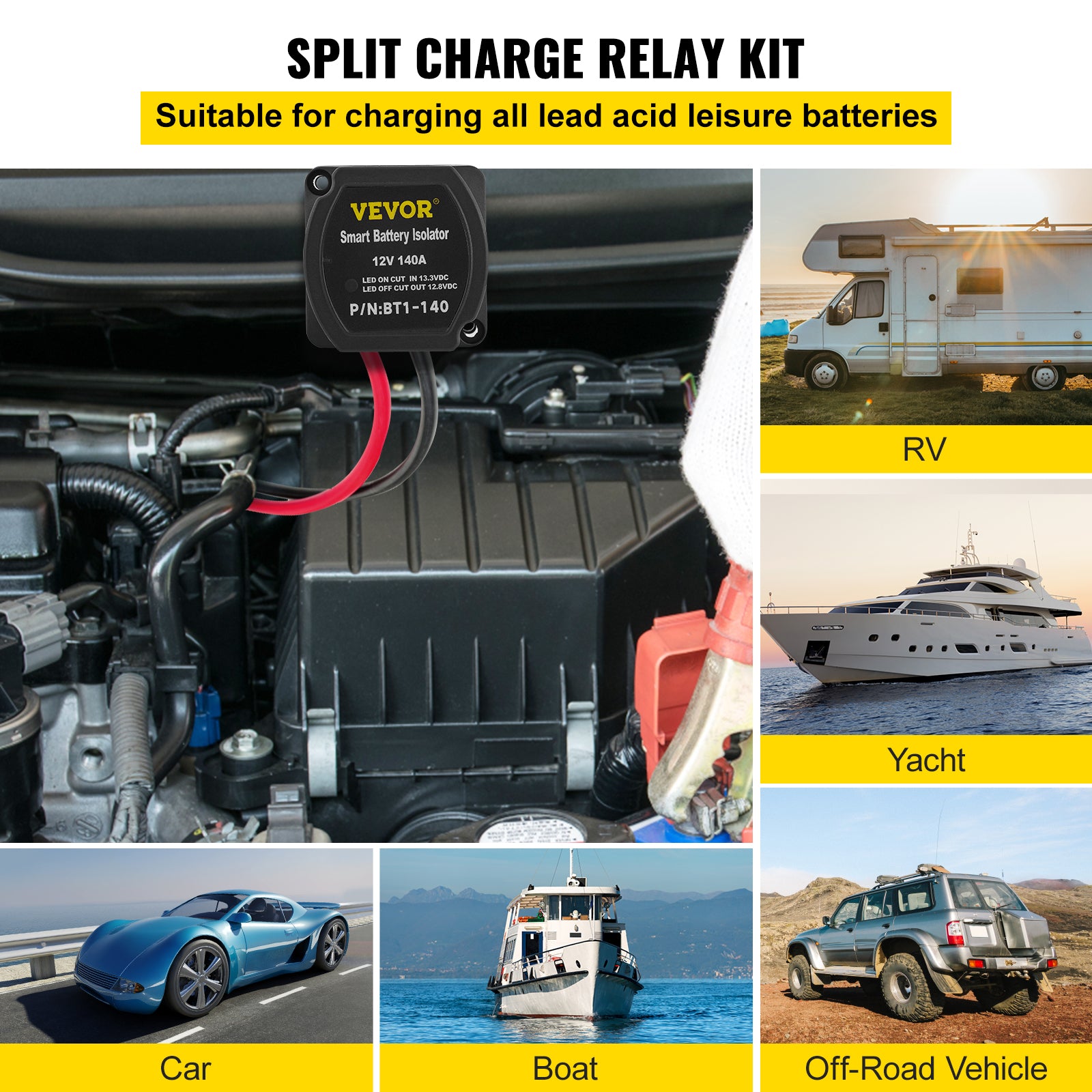

• Wide Compatibility: This isolator kit 12v has a compact size of 66" x11" x66", suitable for almost anywhere. Mainly used in off-road vehicles, camper vans, RVs, caravans, 4x4s, leisure vehicles, ships, yachts, marine applications, etc.

Specifications:

• Voltage: 12V DC
• Continuous Current: 140A
• Intermittent Current: 160A
• Cut-in Voltage: 13.3V
• Cut-out Voltage: 12.8V
• IP Rating: IP65
• Material: Nylon Plastic
• Current Draw-Charging: 280mA
• Current Draw-Standby: 8mA
• Power Studs: M6 Stainless Steel
• Delay Time: 5 Seconds
• Disengage Delay: About 5-10 Seconds
• Operation Temperature Range: -30 to 105℃ / -22 to 221℉
• Item Dimensions (L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm
• Net Weight: ‎4.14 lbs / 1.88 kg

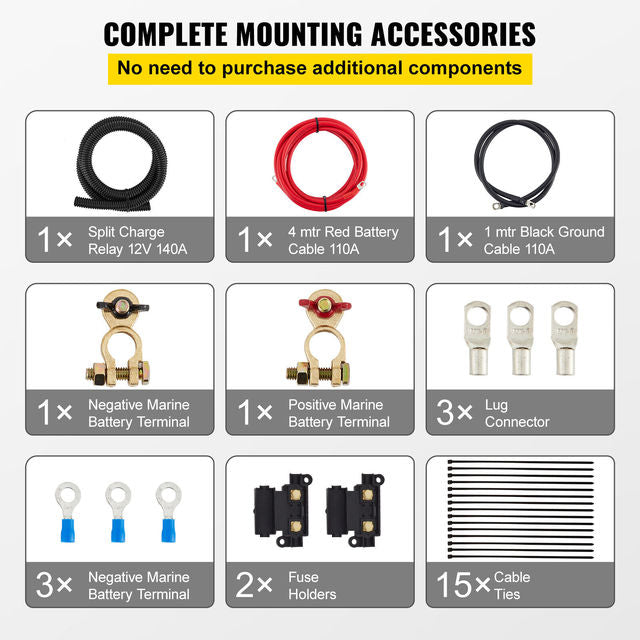

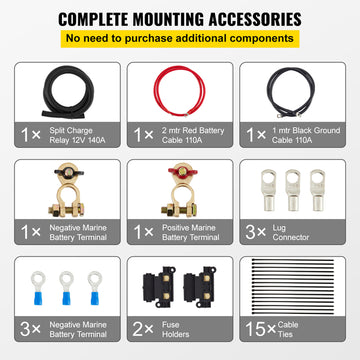

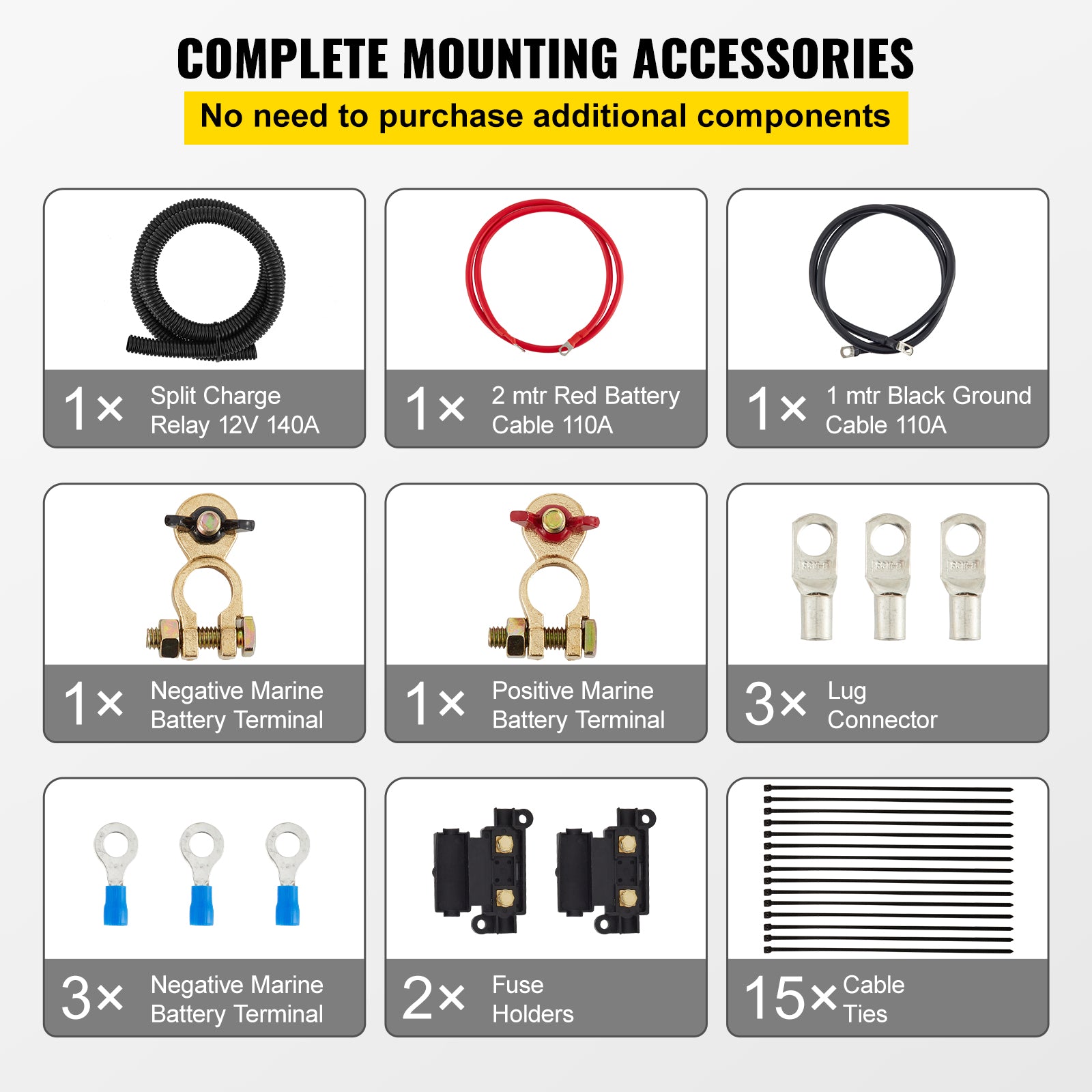

• Accessories Included: Screws, Cable Ties, 2/4/5/6 Meters Red Battery Cable 110A, 1 Meter Black Ground Cable 110A, Negative Marine Battery Terminal, Positive Marine Battery Terminal, Fuse Holders, Lug Connector, Insulated Blue Ring Terminal, 250 mm Red 110A Cable, Shrink Tube, Drill Bit, Black Split Conduit

With SupplySwap, upgrade your vehicle's battery management system with this durable and reliable dual battery isolator. Explore our collections for more advanced automotive accessories.
